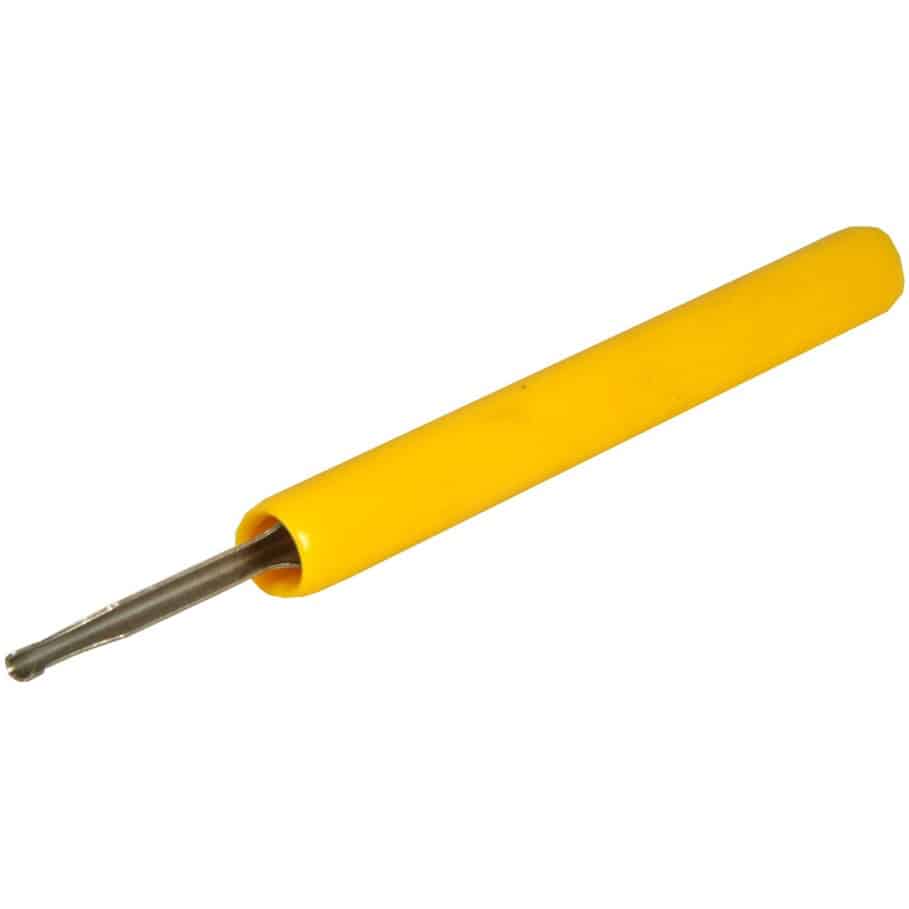

Anderson Power 111038G2 Powerpole® 15-45 Insertion/Extraction Tool

The Anderson Powerpole® Insertion Removal tool is specifically designed for use with the PP15-PP45 series Powerpole® connector. Easily remove already inserted contacts from housings for maitenenace and repair, and insert contacts into empty housings.

Insertion Instructions:

Insert  contact and wire into each housing from rear. Position contact and, using insertion/removal tool, push forward so contact slips under barrier and snaps over retaining spring. Repeat for all wires with contacts.

Extraction Instructions:

Contact removal: place one forward prong of insertion/removal tool between contact and spring; using rotary motion, pull wire until prong disengages contact from spring. Remove from rear of housing once disengaged.

WARNING:

UTMOST CAUTION SHOULD BE USED WHEN WORKING ON LIVE CONNECTOR CONTACTS!
