$0.50

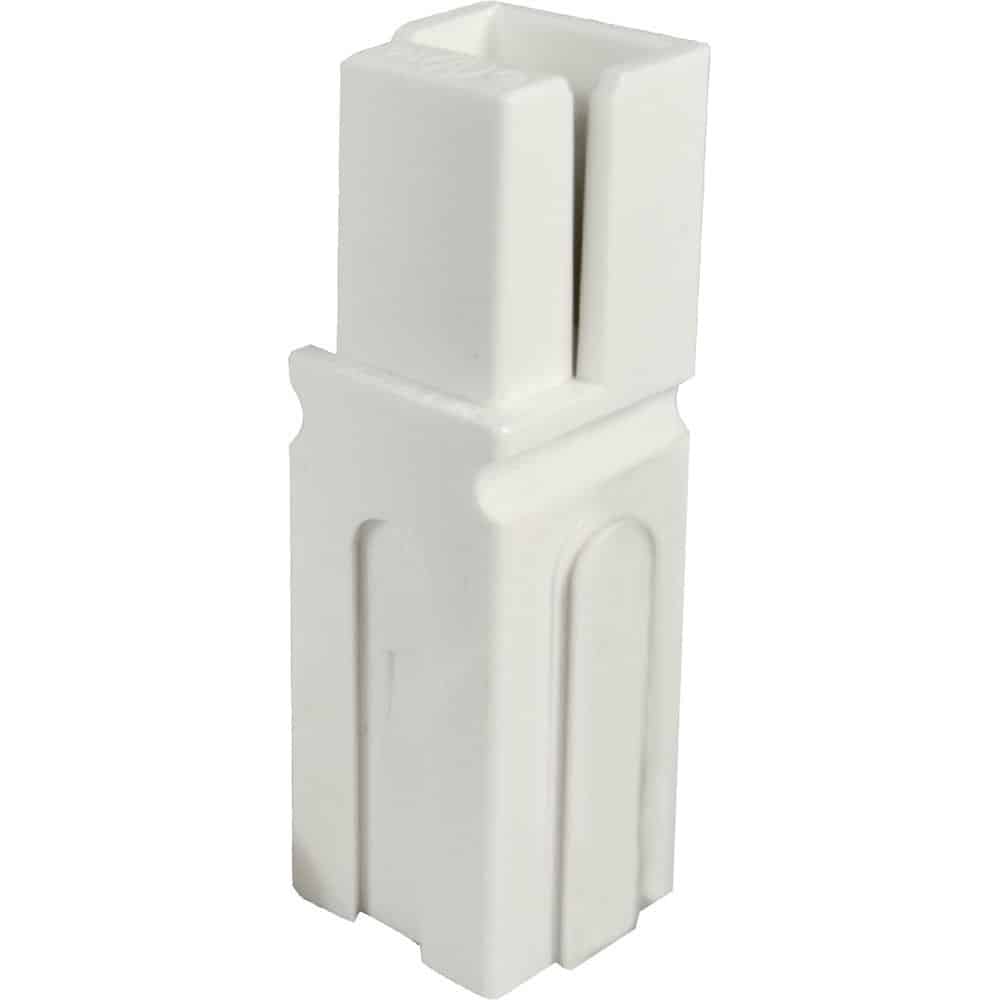

Loose piece Powerpole PP15-45 Series connector housing. Original housing design with an open interface. Versatile connector meets a wide range of power connection needs. The Powerpole connector combines high quality materials with a cost-effective and innovative design for powerful versatility.
Availability: 10000 in stock
PP15/45 series are the smallest Powerpole® housings. They can be used for wire-to-wire or wire-to-board applications. Wire sizes from 20 to 10 AWG offer power capabilities up to 55 amps per pole and 600V max. Dovetail track gives you the option to stack multiple housings vertically or horizontally.
High Power Density: Up to 55 amps in a small and compact footprint
Wire-to-Wire & Wire-to-Board Configurations: Wire & PCB contacts can be used in the same housings
Flat-Wiping Contact System: Wiping action cleans surface during connection/disconnection
Interchangeable Genderless Design: Quick and easy assembly
Silver Plated Contacts: Offers greatest longevity when used in high power, elevated temperature applications. Tin versions are also available.
Color Coded Housings: For easy identification and polarity protection
Molded-In Dovetails: Secure individual connectors together and can be stacked vertically and horizantally
UL94 V-0 Housing Material: Meets strict flammability ratings
| Specification Heading | Specification Detail |
| Weight | 0 lbs |
| Current Rating | Up to 55A |
| Voltage Rating | 600V |
| Housing Material | Polycarbonate |
| Housing Flammability Rating | UL94 V-0 |
| Wire Size Range | 20 to 10AWG |
| Max Wire Insulation Diameter | 0.175" |
| Operating Temperature Range | -4°F to 221°F |
