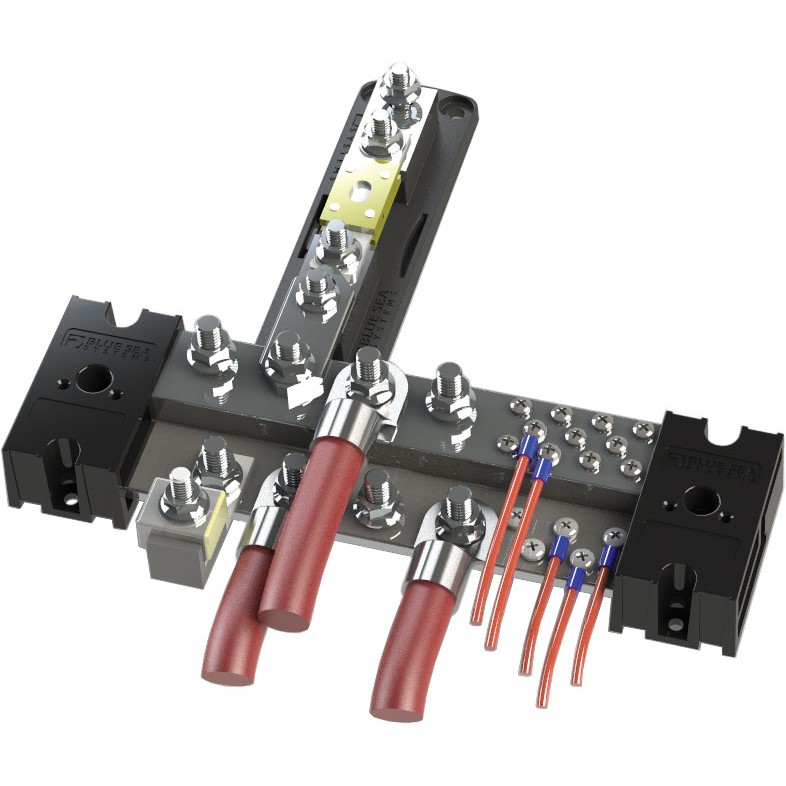

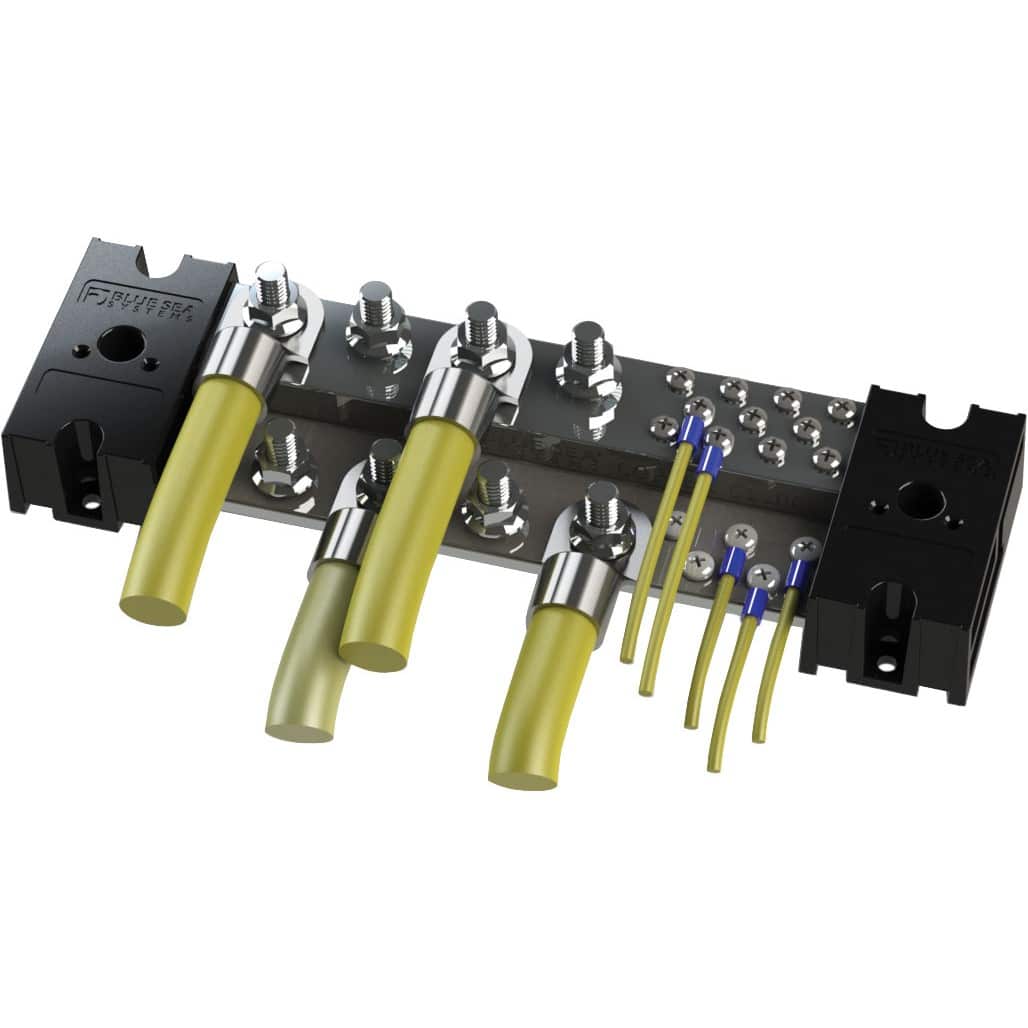

Blue Sea 1990 PowerBar 1000 – 8 3/8in Terminal Studs

$135.99

PowerBar 1000 series busbar with (8) 3/8″ studs, (5) #10 screws, and (11) #8 screws. Rated for 150V and 1000A.

SKU: 1990-BSS Categories: , , , ,

Description

Complex wiring systems require a single point to consolidate large and small conductors. The PowerBar 1000 offers a 1,000 Amp busbar with various size studs and screws to connect conductors and fuse blocks.

    • 1,000 Amp busbar for large complex wiring systems
    • Tin plated pure electrical copper for maximum conductivity
    • Stepped bus design offers two elevations for conductors which doubles

the density of the wire loom compared to traditional bus bars

  • Busbar and fuse block elevations match common fuse blocks allowing for multiple fuse block attachment, eliminating the need for connecting cables
  • One-piece serrated flange nuts ensure correct and secure connections
  • Stainless steel 8-32 screws with captive lock washers for securing smaller gauge wires
  • Busbar may be cut to a shorter length to accommodate constricted spaces
  • Bi-directional busbar end caps allow the ganging of additional busbars

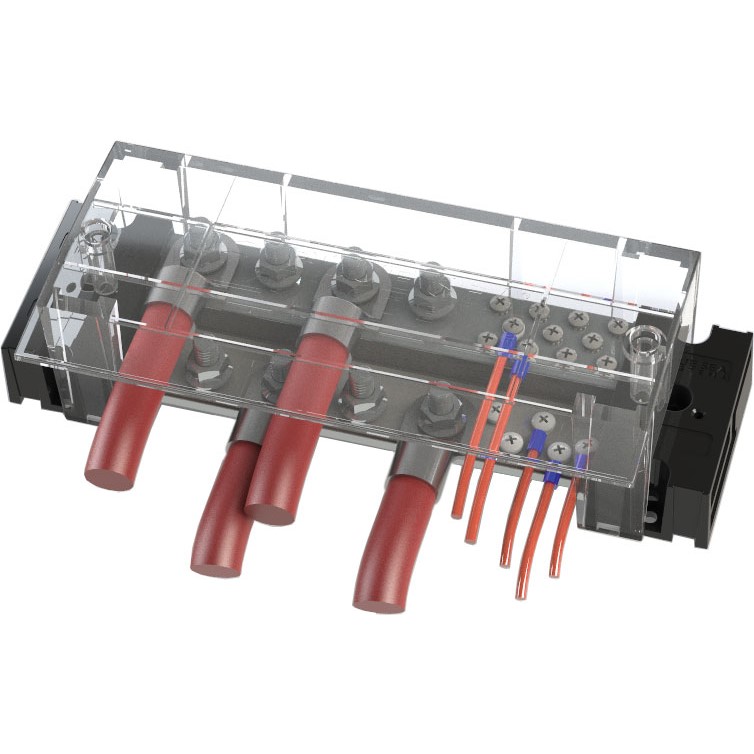

  • Snap on insulating cover meets ABYC and USCG requirements and includes label recess

Specifications
