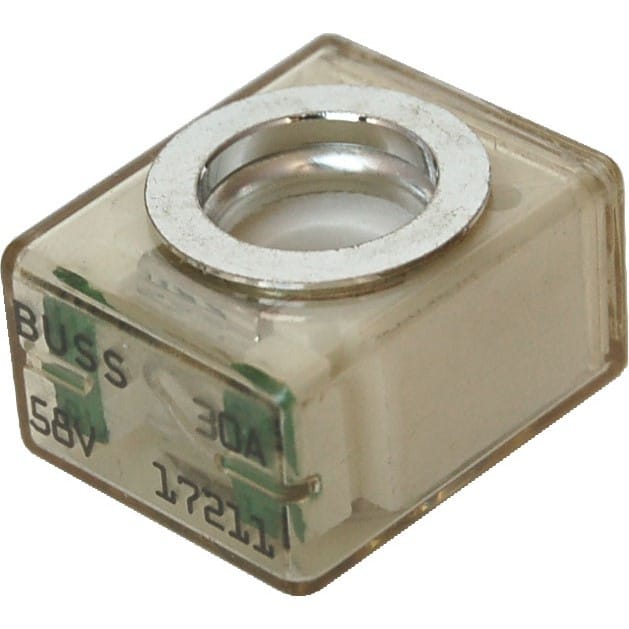

Eaton Bussmann Series MRBF-30 Marine Rated Battery Fuse, 30A, 58VDC

$8.20

Designed for the most demanding environment to provide high current protection for the tightest space constraints. Suitable for main and auxiliary circuit protection such as alternator outputs, starter motor inputs and accessory circuits. The breaking capacity meets the requirements of conventional vehicle batteries and 12V, 24V and 42V electrical networks.

SKU: MRBF-30 Categories: , , , , , ,

Description

Applications: Full range circuit protection for automotive and marine applications. Break in capacity meets the requirements of conventional vehicle batteries and 42V electrical networks.

Interrupt rating satisfies ABYC requirements for DC Main circuit protection on large battery banks. Clear window for visual indication of blown condition. Color coded for each amperage.

  • Voltage Rating: 58VDC Maximum
  • Amperage Rating: 30A
  • Ingress Protection: IP66
  • Ignition Protected: Per SAE J1171
  • Torque Rating: Maximum 12 N • m (106 in-lbs)

Material:

  • Body – Ceramic
  • Housing & Cover: UL 94-V0 Thermoplastic
  • Ring Terminals – Tin Plated

Specifications
